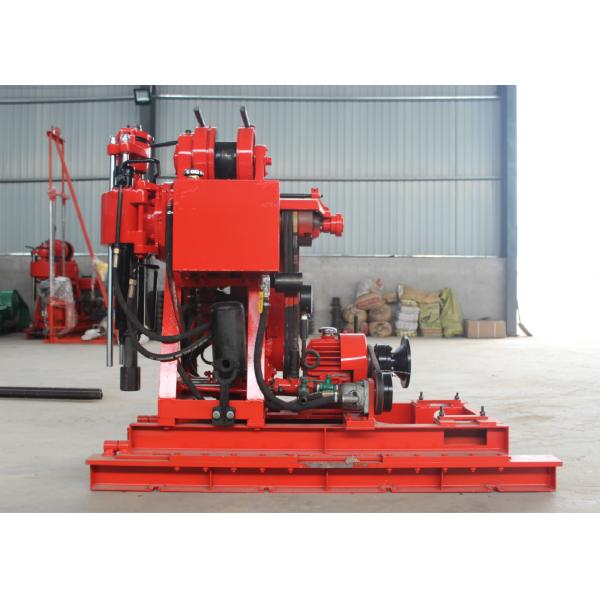

Underground Diamond Core Water Well Drilling Dig For Drill 100 m Depth

Brand Name : ST

Model Number : ST-100

Certification : ISO9001

Place of Origin : China

MOQ : 1 SET

Packaging Details : 1, plastic bags inside,wooden boxes outside,or as customers'request 2, seaworthy packing

Dimension : 1710*860*1360

Usage : water well Drill

Power(W) : 16.2

Name : ST-100

After-sales Service : Engineers available

Contact Now

Underground Diamond Core Water Well Drilling Dig For Drill 100 m Depth

ST-100 drilling rig is oil pressure feeding and portative.

1.1 Application

1.1.1 It is suitable for drilling in reconnaissance, geophysical exploration, road and building exploration, blasting holes and other drilling engineering.
1.1.2 Alloy, steel grit and steel drop bits can be chosen according to the different stratas.
1.1.3 It can drill 2-9 grade sand clay and rock layer.
1.1.4 The rated drill depth shall be 100 meters and the deepest shall not exceed 120m.

1.2 Features
1.2.1 The oil pressure feeding mechanism can improve drilling efficiency and reduce the labor intensity.
1.2.2 A ball mounted card blessing mechanism replaces the chuck which can carry out without stopping the lever, easy to operate, safe and reliable.
1.2.3 Hole pressure gauge indicates pressure which can be easy to grasp the situation inside the hole.
1.2.4 Handle concentration, easy operation.
1.2.5 It is compact.The drill, water pump and diesel engine are installed on the same base, which occupies a small area.
1.2.6 It is light in weight, strong in decomposition and easy to remove .And it can be used in plains and mountains.

Drilling Rig
Drilling diameter(mm)	75,100
Drilling depth (m)	100
Drill pipe diameter (mm)	42
Drilling angle(°)	90-75
Equipment size(L * B * H)	1640 * 1030 * 1440 (mm)
Rig weight (except engine)	500
Gyrator
Spindle speed (four gear) (r/min)	142,285,570
Spindle travel(mm)	450
Spindle no-load lifting maximum moving speed(m/s)	0.05
Spindle no load drop maximum movement speed(m/s)	0.067
Spindle maximum feed pressure(KN)	15
Spindle maximum lifting force(KN)	25
Spindle maximum output torque(KN• m)	0.5
Winch assembly
Winch maximum lifting force (single rope)	10
Reel speed (r/min)	55,110,220
Reel circumferential speed(m/s)	0.42,0.84,1.68
Reel diameter(mm)	145
Wire rope diameter(mm)	9.3
Wire rope density (m)	27
Brake diameter(mm)	230
Brake band width (mm)	50
Water pump
Pump type	Horizontal single cylinder double acting
Maximum displacement (motor)(L/min)	95 (77)
The maximum allowable pressure (Mpa)	1.2
Work pressure (Mpa)	0.7
Cylinder diameter (mm)	80
Piston stroke(mm)	100
Oil pump
Oil pump type	YBC -20/125
Nominal pressure (Mpa)	12.5
Rated flow(ml/r)	20
Rated speed(r/min)	800-2500
Diesel engine or motor
Diesel engine	ZS 1100
Rated power (KW)	16.2
Rated speed (r/min)	2200
Rated pressure(Mpa)	12.5
Motor type	Y160 - 4
Rated power (KW)	11
Rated speed (r/min)	1460

Underground Diamond Core Water Well Drilling Dig For Drill 100 m Depth
