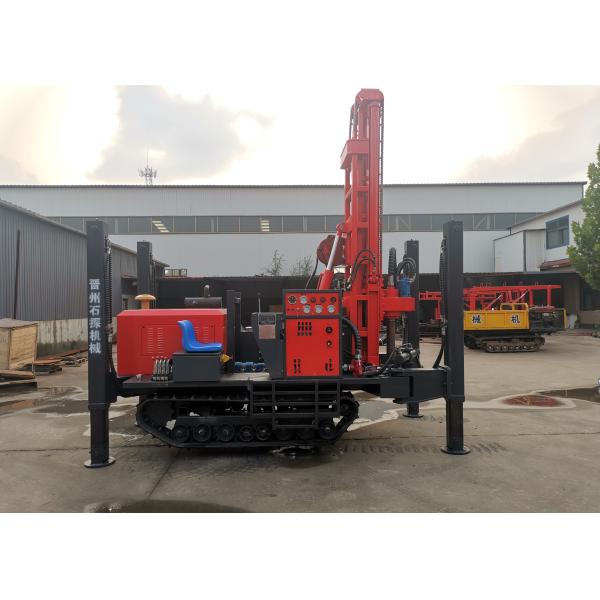

Crawler Mounted Pneumatic Mining 1.25mpa Water Well Drilling Rig

Name: Crawler Mounted Pneumatic Mining 125mpa Water Well Drilling Rig
Brand: ShiTan
Price: 1 USD

Wholesale Crawler Mounted Pneumatic Mining 1.25mpa Water Well Drilling Rig from china suppliers

Brand Name : ShiTan

Model Number : ST-180

Certification : ISO9001

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/A, T/T, Western Union

Delivery Time : Within 7-12 days

Packaging Details : Naked

Type : Water Well Drilling Rig

Power Type : Diesel

Driving way : Hydraulic driving

Usage : Geological core drilling

Weight : 4.5 T

Voltage : 380V

name : well drilling equipment

Air pressure : 1.25-3.5Mpa

Drilling efficiency : 10-35m/h

Weight of the rig : 3.4m×1.7m×2.2m

Optional accessories : 70KW

Fast lifting speed : 40m-min

Contact Now

Crawler Type Mounted Pneumatic Mining Water Well Drilling Rig

Water Well Drilling Rig introduce

180 water well drilling rig is a type of light weight, high efficient, multiple functional drilling hole equipment. Which is equipped with advanced structure, easy to handle,high efficient, durable using etc , widely used for drilling well, farming irrigation well,geothermal air conditionhole and other usage well hole, especially suitable for water intaking in moutainnous area and rock layer. The drill adopts newest hydraulic technology, mating with big torque hydraulic motor rotation and large bore hydraulic oil cylinder driven, lower the labor, cut down assist time, improve efficiency of construction and project quality.

Water Well Drilling Rig parameter

Item NO.	ST-180	Air consumption(m³/min)	17-31
The Weight(T)	4.5	Equipped capacitor(Kw)	55
Dimensions(mm)	380015502350	Swing speed(rpm)	45-65
The hole diameter(mm)	140-254	Swing torque(N.m)	3200-4600
Drilling Depth(m)	180	Drill pipe diameter(mm)	76 89
Once-time advance length(m)	3.3	Drill pipe length(m)	1.5 2.0 3.0
Walking speed(Km/h)	2.5	Rig lifting force(T)	10
Climbing angles(Max.)	30	sopporting Power	29m3/min 23BAR AIR COMPRESSOR
Using air pressure(Mpa)	1.7-2.5

Water Well Drilling Rig Feature

1.Safe and stable walking mechanism.
2.The center of gravity is low and the ground clearance is large, so that it can cross the rough road easily. Special wheel motor drive has strong climbing ability and low failure rate.
3.Advanced automatic leveling function of crawler and stop brake system not only make the drilling rig run stably, but also greatly reduce the impact of the ground on the drilling rig and ensure the driving safety.
4. The unique anti stripping device has greatly improved the reliability of the drilling truck when walking.
5.Vehicle-mounted diesel engine is adaptable to harsh environment. It can walk freely without external air compressor and is easy to move.

Advantages

1.We have more than15 years manufacture and export experience.
2.Exporting to all over the world,win high reputation among customers.

3.CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products.
4.Near the Qingdao port convenient for exporting.
5.Customer service staff 24 hours online,offer free technical support.

6.Factory and Competitive Price we offer.

7.Strong Research & Development technical team.

8.Various machinery to meet all your needs at our factory.

9.Engineers are available to guide the installation and take care of other problems.

10.We offer OEM&ODM service to meet all your requirements.
