Introduction to Crawler Mounted Drill Rig
Crawler drilling rig is composed of main engine, hydraulic station, operation platform and crawler. It is connected with ultra-high pressure hydraulic hose to make the main engine move flexibly.XY series drilling rig is a medium-shallow depth hole core drilling machine.It matched electric motor or diesel engine as power units.The machine with big output torque,strong carrying capacity,more convenient to deal with all kinds of down hile accidents.Machanical transmission with compact structure and good rigidity.
1.The Crawler Mounted Drill Rig Information:
| Drilling Depth: | 100m,70m,50m,30m |
| The Hole Diameter | 75mm,91mm,110mm |
| Kelly | 52*59*4200mm |
| Drill Pipe Diameter | 42mm |
| Drilling Angle | 90°-75° |
| Rig Dimensions(Length*Width*Height) | 1640mm*1030mm*1440mm |
| Weight (excluding power) | 500kg |
| Swivel Head |
| Spindle speed(3-speed) | 142/285/570 r/min |
| Spindle stroke | 450 |
| upward displacement speed of idling vertical spindle | 0.05m/s |
| Downward displacement speed of idling vertical spindle | 0.067m/s |
| Spindle pull-down max | 15KN |
| Spindle lifting capacity max | 25KN |
| Gyrator |
| The Vertical Speed (fore steps) | 71,142,310,620 r/min |
| The Vertical Stroke | 450mm |
| The Maximum Speed Of Vertical Load | 0.05m/s |
| The Vertical Load Down The Maximum Moving Speed | 0.067m/s |
| Max Feeding Force | 15KN |
| Max Lifting | 25KN |
| The Vertical Maximum Moving Speed | 1.25 KN.M |
| Hoist |
| Max.lifting capacity(1-speed,single rope) | 10KN |
| Cable volume (number) of hoisting drum | 27m |
| Wire rope dia. | 9.3mm |
| Mud Pump |
| Types | Horizontal reciprocating single-acting piston pump |
| Displacement max | 95 L/min |
| Equipped with motor | 77 L/min |
| Allowable working pressure max | 1. 2Mpa |
| Continuous working pressure | 0.7Mpa |
| Suction pipe dia | 32mm |
| Discharge pipe dia | 25mm |
Crawler Mounted Drill Rig application:

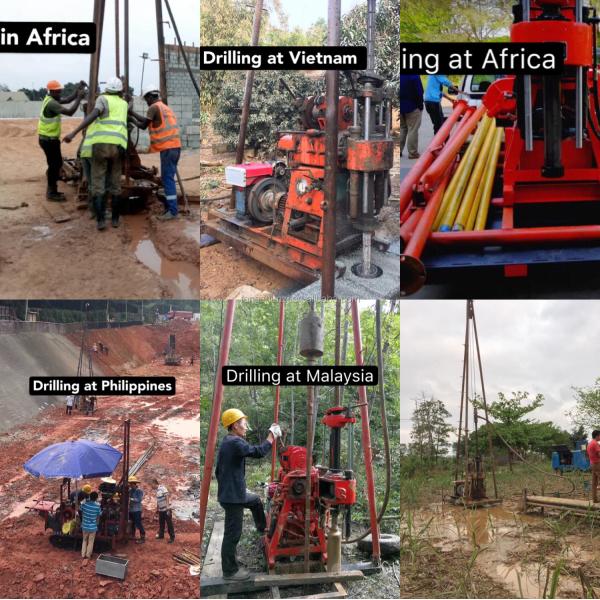

Industrial and civil buildings, as well as highway, railway, bridge foundation, dam site, water conservancy, water well, prospecting and other site geological survey work. According to the different strata, diamond, cemented carbide, screw and other bits can be selected for drilling.
The rig has the following characteristics
1. A reasonable range of rotation speed is selected. The rotation speed is divided into eight stages, with centralized speed change and mutual self-locking. It is suitable for drilling rig sampling and pile hole construction.
2. The rig has two reverse speeds, which is convenient to handle faults safely.
3. The rotary chuck adopts the manual ball chuck, which is reliable in clamping, does not damage the active drill pipe, and can reverse the rod without stopping.
4. Oil pressure feeding, easy operation, high drilling efficiency and low labor intensity.
5. The control handle is less, the layout is reasonable, and the operation is flexible and reliable.
6. The double disc normally closed friction clutch is adopted, which is flexible in opening and closing, and easy to adjust and use. Equipped with fore-and-aft moving oil cylinder, the rotator moves 465mm backward, which brings a lot of convenience to the following drilling tools.
7. The drilling rig is light in weight, compact in structure and convenient in assembly and disassembly. It is suitable for drilling in hilly or mountainous areas.
