Product Application
1 ton diesel crawler dumper with rubber track is a frequently-used of special track vehicle , it is widely used in agriculture, minerals, water conservancy and other large and medium-sized projects for earth, rock, coal and other displacement work. Crawler transport vehicles according to their product rated capacity (load capacity) can be divided into light crawler and heavy-duty crawler.
Parameters of tracked transport vehicles
| Type : 1 T | Bucket size: 1200*1000*450 mm |
| Size: 2200*1000*1370mm | Crawler material: Rubber material |
| Track ground length: 1200mm | Loading &unloading method: Hydraulic dump |
| Motor size: 186 | Gear type: drawbar |
| Gear: +3 forward gear+1 reverse gear | The height from the bottom of the bucket to the ground: 500 mm |
| Steering method: Clutch brake steering | Start method: Electric start |
| Standing slope angle: 35 degree | Crawler size: 2300*720*460mm |
Main Features
1. Transport vehicles can operate freely in mud and icy roads
2. Self-unloading design, tracked walking, motor walking, greatly extended the use ability.
3. The specific size can be customized according to the requirements
4. Strong carrying capacity, large climbing ability, simple operation and easy maintenance.
Suitable range for tracked transport vehicles

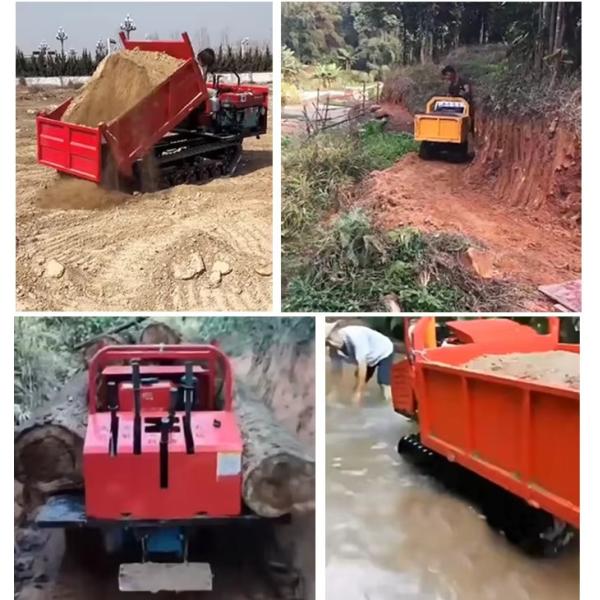

1. Mountain tracked transport vehicle is an engineering vehicle designed to work in complex and extreme road conditions. It uses tracks as a mobile device to move the vehicle through the friction and traction of the tracks. This design allows it to travel freely in various terrains such as mud, ice, rugged mountain roads, soft lawns, and deserts, demonstrating excellent off-road capabilities.
2. The working ability of mountain tracked transport vehicles is diverse, not only can they transport trees in forests, but also perform loading and unloading operations. Some mountain crawler transport vehicles can also be equipped with winches, which use the wire ropes of the winches to drag the logs to the side of the vehicle, and use a crane to lift the logs onto the platform, or use a crane to unload the logs. Its load-bearing capacity is also strong, and the crane can lift logs of different weights.
3. In addition, mountain tracked transport vehicles have a very wide range of applications, not only in agricultural and forestry fields such as transportation in agricultural and forestry orchards and loading in freight yards, but also in industrial fields such as water conservancy engineering, infrastructure engineering, and mining. It can adapt to complex environments such as rice paddies, swamps, riverbanks, and tropical forests, demonstrating its strong adaptability and practicality.
4.Overall, mountain tracked transport vehicles have become an ideal choice for working in complex and extreme road conditions due to their powerful off-road capabilities, diverse working abilities, and wide applicability.
