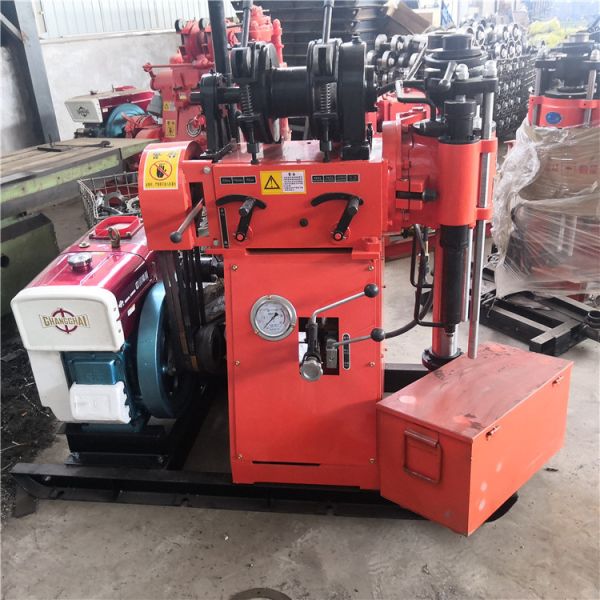

Depth Portable Mining Drill Rig , Water Drilling Machine For Water Seeking Project 150m

Name: Depth Portable Mining Drill Rig Water Drilling Machine For Water Seeking Project 150m
Brand: JINZHOU SHITAN
Price: 1 USD

Brand Name : JINZHOU SHITAN

Model Number : ST-150

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 2000 sets per year

Delivery Time : 7-10 days

Type : Rotary Drilling Rig

Power Type : Diesel

Usage : Soil Investigation, Water Well, SPT

Dimension(L*W*H) : 1580*1080*1200mm

Contact Now

150m Depth Portable Water Well Drilling Rig Machine for Water Seeking Project in Rural Area

Product Application:

ST-150 made by JINZHOU SHITAN is widely used in the construction of projects like prospecting,railway,road port,bridge,water conservancy and hydropower,tunnel,well, industrial and civil construction,geological exploration,large diameter boring pile and small diameter diamond core deep hole drilling ,etc.

Product Parameter:

Basic Parameters
Drilling Depth	150 100 20 m
Drilling Hole Diameter	46 76 300 mm
Drill Pipe Diameter	42mm
Gross Weight Of Drilling Machine	450kg
Dimension LWH	158010801200 mm
Revolving Plate
Rated Speed	48 100 200 350 650 r/min
Maximum Torque	2000N*m
Maximum Cylinder Driving Force	20,000N
Maximum Cylinder Lifting Force	30,000N
Lifter
Lifting Capacity Single Pipe, Low Speed	15,000N
Bobbin Line Speed	0.32 0.66 1.24 2.58 m/s
Bobbin Diameter	140 mm
Rope Diameter	11 mm
rope capacity	24 m
drilling tower
type	Staircase Tower(or Steel Pipe tower)
height	6m
Power machine
type	Changchai ZS1100 Diesel engine
rated power	12.1 kw (16HP)
weight	150kg

Depth Portable Mining Drill Rig , Water Drilling Machine For Water Seeking Project 150m
