Multi - Function Yellow Hydraulic Crawler Drilling Machine With ISO Certificate

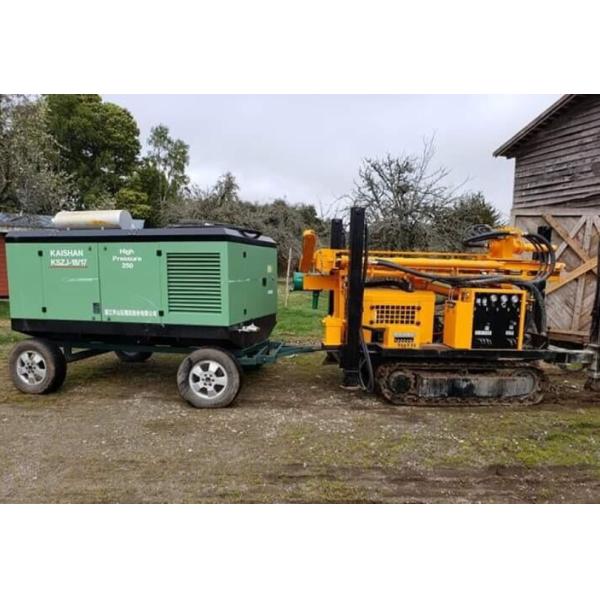

ST 200 Crawler Mounted Drilling Rig Description
ST 200 cralwer mounted drilling rig can be both equipped with mud pump and air compressor. Our drilling rig is firm and durable, can adapt to the difficulty operating environment, with favorable price, which will certainly bring you more investment returns
ST 200 Crawler Mounted Drilling Rig Tech Parameter
| Applicable Industries | Energy & Mining, drilling |
| Model | ST 200 Cralwer Mounted Drilling Rig |
| Condition | New |
| Type | Rotary Drilling Rig |
| Power Type | Diesel |
| Place of Origin | China |
| Brand Name | ANBIT |
| Usage | Ore |
| Dimension(L*W*H) | 6400MM*2250MM*2700MM |
| Weight | 5800KG |
| Certification | ISO9000 |
| Warranty | 1 YEARS |
| Marketing Type | New Product 2020 |
| Drilling diameter | 90-152mm |
| Depth | 25M |
| Rotary speed | 0-90rpm |
| DTH | K40 |
| Drilling Rods | 76*2m+76*3m |
| Air consumption | 13-20m3/min |
| taavelling speed | 0-2.5km/h |
ST 200 Crawler Mounted Drilling Rig Advantages
1. The drilling rig adopts an automatic telescopic drilling tower supported by two oil cylinders, and a group of hydraulic valves control the drilling tower to lie on its back. The operation is time-saving, labor-saving, safe and feasible, and creates benefits for users.
2. The chassis adopts rubber crawler, which has light weight and low life cycle cost. It can reduce the noise of vehicle traveling mechanism, reduce the vibration of vehicle body, greatly reduce the fuel consumption, and can walk on urban roads without damaging the road surface.
3. The chassis is equipped with four threaded legs (or hydraulic high legs), which can be installed and adjusted quickly and conveniently. It can be used for leveling the working plane. The loading and unloading vehicle can reduce the lifting cost and can be used as an auxiliary support during work.
4. Using 48V electric starting diesel engine can greatly reduce the labor intensity of the operator. When the diesel engine is difficult to start in cold season, it shows the advantages of the drilling rig.
5. This machine is equipped with bw-160 mud pump, which has large flow and pressure, convenient maintenance, and convenient purchase of spare parts everywhere
Strong and reliable power
1. Adopt famous brand four cylinder diesel engine as power, large power, small volume, small vibration and stable operation.
2. The perfect combination of a patented diesel engine intake regulator with a pre-filter, oil filter and paper filter enhances the adaptability of the drilling rig to harsh environment and prolongs the service life of the diesel engine.
