Civil 150m Drilling Machine Crawler Diesel Hydraulic Drilling Machine XY-1A Water Well Drilling Rig
Introduction of Soil Test Drilling Machine
XY-1A Soil Test Drilling Machine is a kind of core drilling equipment, which is mainly used for the general survey and exploration of metal and non-metallic solid minerals. In addition, it can also be used for engineering geological exploration, hydrogeological survey, oil and gas field survey and exploration, as well as water well drilling. The core drills are rotary drilling rigs because they are required to take out relatively complete, non hybrid and non torsion formation rock samples. According to the structure of rotary drilling rig, rotary drilling rig can be divided into three types: rotary drilling rig and rotary drilling machine.
Soil Test Drilling Machine parameters
| XY-1A Type |
| Drill | Swivel Head |
| Drilling depth | Max.150m | Spindle speed | 1010,790,470,295,140(r/min) |
| Hole diameter | Max.150m | Spindle stroke | 450kmm |
| Drill rod diameter | 42.50mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump |
| Model | YBC-12/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.25Mpa |
| Flow speed | 8ml/r | | |
| Rated speed | 1500r/min | | |
| Hoist | Power(diesel) |
| Max. lifting capacity | 15KN | Model(diesel engine) | 1105 |
| Hoisting drum revolution | 121,76,36(r/min) | Rated power | 18KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG |
| SIZE | 1620*970*1560mm |
The main features of core drill rig are as follows
1. With automatic oil pressure feeding mechanism, it can improve drilling efficiency and reduce labor intensity.
2. The ball clamp type clamping mechanism can realize the rod reversing without stopping the machine. The operation is convenient, safe and reliable.
3, The handle is centralized and easy to operate. It is equipped with a pressure gauge at the bottom of the hole to indicate the pressure, which is convenient to master the situation in the hole.
4. The structure is compact, the drilling rig, water pump and power engine (diesel engine or motor) are assembled on the same base, occupying a small airport area. Light weight, strong decomposition, easy to move.
Application:

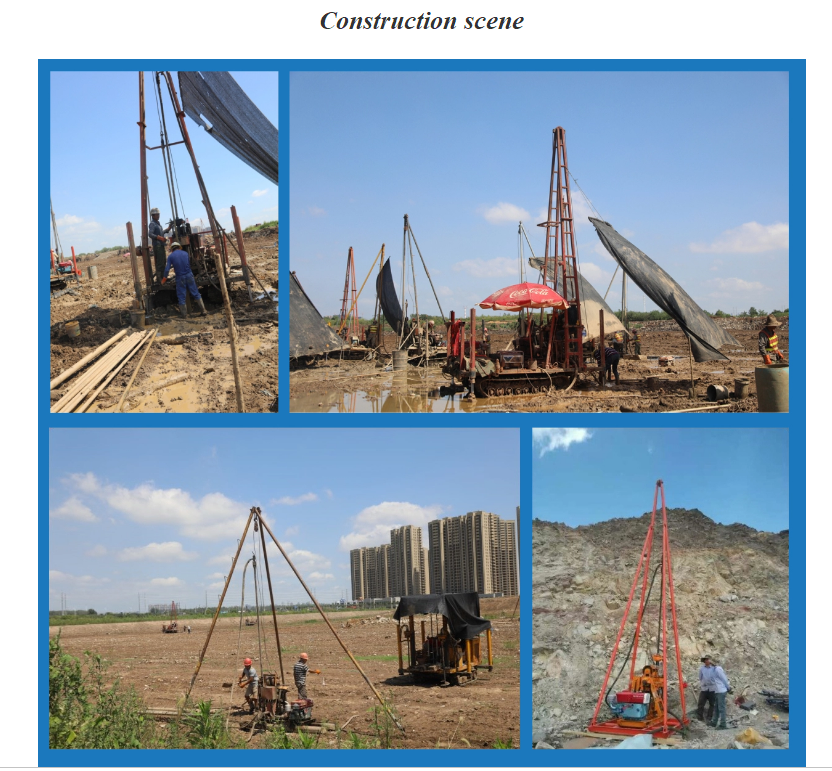

1. The drilling rig is a high-speed drilling rig, which is suitable for general survey exploration, geophysical exploration, road and building exploration, drilling and other drilling projects.
2. Alloy, diamond and composite bits can be selected for drilling according to different bottom layers.
3. It can drill grade 2-9 sandy clay and rock stratum.
Main features:
1. It has oil pressure automatic feeding mechanism to improve drilling efficiency and reduce workers' labor intensity.
2. The ball clamp clamping mechanism is used to replace the chuck, which can reverse the rod without stopping the machine, which is convenient, safe and reliable.
3. The winch is equipped with cage to form a double-sided supporting star wheel structure, which can withstand strong impact
4. Four groups of bearings of the vertical shaft box are positioned to ensure that the gyrator is rigid enough to deal with complex geological conditions such as gravel layer and pebble layer
5. The machine adopts taper clutch, which has the outstanding characteristics of large transmission torque, convenient operation and maintenance free
